Data Logger Kit (from Nuts & Volts)

.

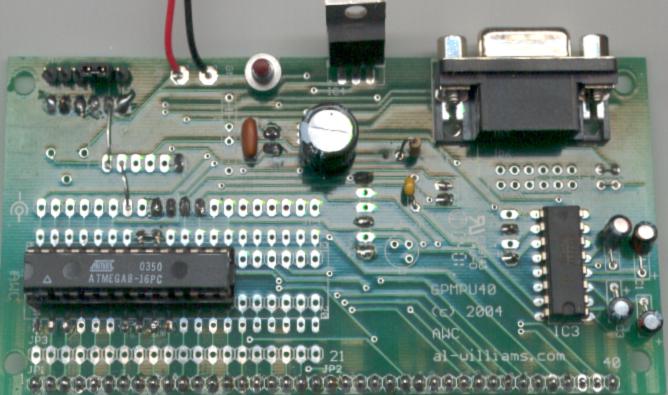

Shown with some modifications

As seen in Nuts & Volts, this data logger will read temperature data via modem. This is our normal APP-IV kit with a crystal instead of a ceramic resonator, some extra jumpers, and an LM34 temperature sensor.

Even if you don't plan to use the data logger, this board is an excellent value since it contains a bootloader program and the GNU C compiler! That's right -- you can program this board with your own creations using C. Start with the data logger code, or write your own program from scratch. The APP-IV C libraries make it a snap to add serial I/O, A/D, time delays, and a host of other features built into the ATmega 8 processor.

Look at the powerful capabilities of this board:

Atmel AVR ATmega8 processor running at 10MHz Real time counter, 1 16-bit timer/counter, and 2 8-bit timer/counters 3 PWM channels UART, I2C, and SPI interfaces Hardware multiplier Analog comparator 4 channels of 10-bit A/D and 2 channels of 8-bit A/D Analog comparator 8K bytes of flash memory 1K of RAM 512 bytes of EEPROM Libraries allow you to easily use resources (use printf and gets, for example, with the onboard serial port). Also works with open source AVRLib which provides many advanced features. NEW: Supports SeaBass Basic Compiler (learn more)

Key Links APP-IV Manual GPMPU40 Manual Tutorial Resources SeaBass Basic Compiler

Normally, an APP-IV is about $40. But for a limited time, Nuts & Volts readers can get this enhanced version preprogrammed with the data logger softwarefor only $33! And that includes a free LM34 worth over $2. Note this is a kit, and requires assembly. This also makes it easy to customize to your own requirements.

Hurry, this offer is only good for a limited time.

	Nuts & Volts Data Logger Kit with power supply (includes PC board and all components, manual, IC and crystal -- you supply your own breadboard and 9V battery) $33.00 each
	SeaBass Basic Compiler CDROM $9.95 (with purchase of the above kit only) Note: The board already includes the C compiler. This is an optional Basic-like compiler.
	Extra APP-IV chip and 10MHz ceramic resonator $14.95 each
	Serial cable (DB9 female to male, 6') $8.99

Don't forget to check out our other kits and take advantage of our flat rate shipping!
